Enlarged Image
30 Pins - 19mm wide connector


Error retrieving reviews from the server.

ASUS N551JX HD Replacement Laptop Screen
( Without Touch Glass )

SKU
1056125
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1366X768 (HD) 768p
Backlight
LED
Touch Screen
NO
Touch Glass
Not included
Finish
Color Shine™ / Glossy (Glare)
Connector
30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Display Mode
TN (Twisted Nematic)
 ⓘ Specifications Help
Alternative Finish
Matte / Anti Glare
Warning: There may be more than one screen type for your computer. You must choose the correct type. See other options.
Have you got the right product?

The currently selected product on this page is a 15.6" 1366X768 (HD) with a LED backlight and a 30 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This Asus computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?    How do I Order By Screen Model?

Prices shown include UK VAT

 Variations of Asus N series screens
Type
Backlight
Price
Trade

 ASUS N551JX 15.6 FULL HD TOUCH
Matte. Bottom right connector 30 pins (0.5mm)
15.6"
FULL-HD
1920X1080

LED

£44.34

£41.23



Legend:
    Available to buy online
    Unavailable
Asus N series replacement laptop LCD screen
ASUS N551JX 15.6 HD LAPTOP SCREEN NO DIGITIZER
15.6"
1366X768
HD
LED
30 Pin/19mm

Class I Display for ASUS laptops
This is a replacement screen for the Asus N551jx (HD) computer. Class I and fully compatible LCD display part.

Asus N series LCD specifications.
We have these screens with a GLOSS (Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1366X768 (or is known as HD resolution or 768p).

Technical data for the Asus N series LCD.

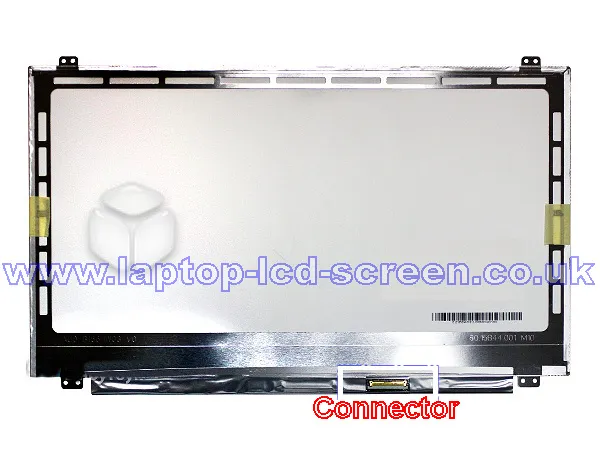

This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD.

100% Compatible part.
For the Asus N551jx (HD).

Not Touchscreen. Raw LCD panel only.
Asus N series screens can sometimes come touch screen enabled, this product is a non-touchscreen model. We are supplying the raw LCD panel only without any accompanying front touch glass overlay (digitizer). If your laptop has a screen and a glass covering providing touch screen features you will need the raw LCD and the digitizer glass together. Professionals can separate the old digitizer with a heat-gun (if not damaged), and fit it to the new display. If your laptop is not a touchscreen model, this is the correct product for you.

Cost of ASUS screen.
Asus N551jx (HD) screen replacement cost is just £43.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality ASUS replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Asus N551jx (hd) Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.

Recently viewed products

Warning!

This screen is only for devices with 15.6" displays @ 1366X768 (HD) resolution with a LED backlight and a 30 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This product is not for touch screen devices. [ Info ⓘ ]

There are different screen type choices for your device on this page. You must choose the correct type. If you are unsure which type to choose, we recommend removing your old screen and searching for the screen model number instead.
