You are at > Home > Laptop Screens > Asus LCDs (All) > ROG Gaming > Rog Zephyrus
×

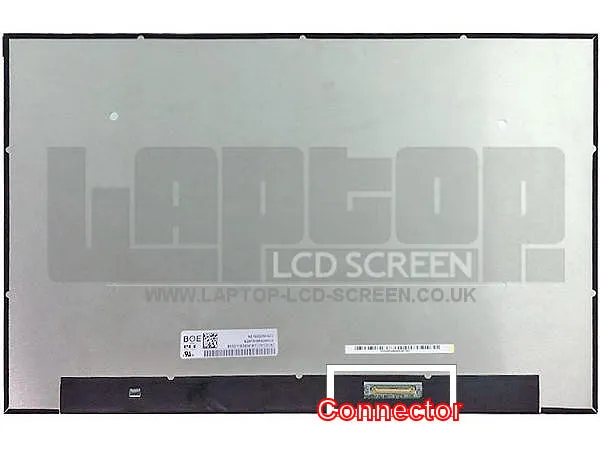

Enlarged Image
40 Pins - 25mm wide connector


Error retrieving reviews from the server.

ASUS ROG ZEPHYRUS G16 GU603VU N Series WQXGA 240hz Replacement Laptop Screen

SKU
2496188
Condition
NEW, Class 1 (ISO-9241)
Size
16.0"
Resolution
2560x1600 (WQXGA)
Backlight
LED
Connector
40 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Frame Rate
240hz Refresh
Display Mode
IPS
Screen Bezel
Narrow Border/Narrow Bezel
Colours
High Gamut 100% sRGB
NTSC
72%
 ⓘ Specifications Help
Alternative Technology Available
165HZ IPS
Warning: There may be more than one screen type for your computer. You must choose the correct type. See other options.
£73.14
 + Shipping Costs
Quantity:
Order in 0 Minutes for UK delivery Tuesday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
Have you got the right product?

The currently selected product on this page is a 16.0" 2560x1600 (WQXGA) with a LED backlight and a 40 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This Rog computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?    How do I Order By Screen Model?

Prices shown include UK VAT

 Variations of Rog Zephyrus screens
Type
Backlight
Price
Trade

 ASUS ROG ZEPHYRUS G16 GU603VU N SERIES 16.0 WUXGA 165HZ
Matte. Bottom right connector 40 pins (0.5mm)
16.0"
WUXGA
1920X1200

LED

£73.14

£68.01



Legend:
    Available to buy online
    Unavailable
Rog Zephyrus replacement laptop LCD screen
ASUS ROG ZEPHYRUS G16 GU603VU N SERIES 16.0 WQXGA 240HZ LAPTOP SCREEN
16.0"
2560x1600
WQXGA
LED 240hz
40 Pin/25mm

Class I Display for ASUS laptops
This is a replacement screen for the Asus Rog Zephyrus G16 Gu603vu N Wqxga (240hz) computer. Class I and fully compatible LCD display part.

Rog Zephyrus LCD specifications.
Please check that your original screen has a glass area of 16.0" inches diagonally (not including the frame) and has a maximum resolution of 2560x1600 (or is known as WQXGA resolution ).

Technical data for the Rog Zephyrus LCD.
This screen's backlight is powered by LED backlight technology. The signal connector on this LCD is 40 pin and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. Special features: 240hz refresh rate. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

100% Compatible part.
For the Asus Rog Zephyrus G16 Gu603vu N Wqxga (240hz) . This display will replace many screen makes and models, including (but not limited to), the following part codes: NE160QDM-NM4

High Quality Display.
This is the Rog Zephyrus DCI-P3 Display, boasting 100% sRGB and 72% NTSC coverage.

Easy Mount Display.
This slimline, Narrow-Bezel ASUS LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Cost of ASUS screen.
Asus Rog Zephyrus G16 Gu603vu N Wqxga (240hz) screen replacement cost is just £73.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality ASUS replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Asus Rog Zephyrus G16 Gu603vu N Wqxga (240hz) Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.

Warning!!

This screen is only for devices with 16.0" displays @ 2560x1600 (WQXGA) resolution with a LED backlight and a 40 Pin signal, bottom right connector, with a 0.5mm connector pitch.

There are different screen type choices for your device on this page. You must choose the correct type. If you are unsure which type to choose, we recommend removing your old screen and searching for the screen model number instead.
