30 Pins - 19mm wide connector


Error retrieving reviews from the server.

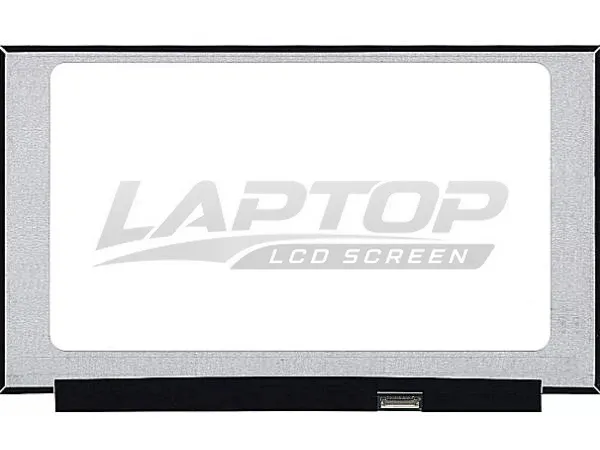

AUO B156HAN02.2 HW1B Replacement LCD Screen Part

SKU
1951814
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1920X1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Display Mode
IPS
 ⓘ Specifications Help
Alternative Finish
Glossy / Glare
Alternative Technology Available
60HZ TN
72% NTSC / 100% sRGB
£43.14
 + Shipping Costs
Quantity:
Order in the next 16 hours 09 mins 48 secs for UK delivery Thursday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
AUO 15.6 inch LCD replacement laptop LCD screen
AU OPTRONICS AUO B156HAN02.2 HW1B 15.6
15.6"
1920X1080
FULL HD
LED
30 Pin/19mm

Class I Display - 100% Compatibility for AUO screen replacement.
This item is an LCD compatible with Auo B156han02.2 H/W:1B. For more information about what we're sending please see the Buyer's Guide tab. This is a class I screen, and guaranteed to perfectly replace your original display LCD display part.

AUO 15.6" LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p).

Technical data for the AUO 15.6" LCD.
This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

Cost of AUO screen.
Auo B156han02.2 H/W:1B screen replacement cost is just £43.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality AUO replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Auo B156han02.2 H/w:1b Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.
