You are at > Home > Replacement LCD parts > AUO LCDs (All) > AUO 15.6"
×

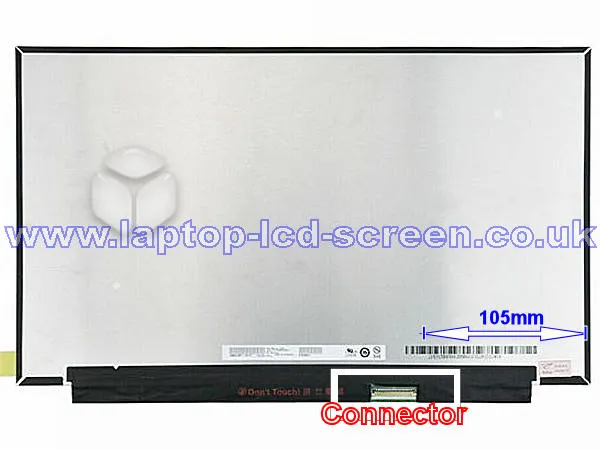

Enlarged Image
40 Pins - 25mm wide connector

Connector position



Error retrieving reviews from the server.

AUO B156HAN08.0 HW0A Replacement LCD Screen Part

SKU
1235705
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1920X1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
40 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Connector Right Edge
10.5cm from edge of LCD
Frame Rate
144hz Refresh
Display Mode
IPS
 ⓘ Specifications Help
Alternative Technology Available
120HZ IPS
165HZ IPS
Connector 100mm from edge
£68.34
 + Shipping Costs
Quantity:
Order in the next 0 Minutes for UK delivery Thursday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
AUO 15.6 inch LCD replacement laptop LCD screen
AU OPTRONICS AUO B156HAN08.0 HW0A 15.6
15.6"
1920X1080
FULL HD
LED 144hz
40 Pin/25mm

Class I Display - 100% Compatibility for AUO screen replacement.
This item is an LCD compatible with Auo B156han08.0 H/W:0A. For more information about what we're sending please see the Buyer's Guide tab. This is a class I screen, and guaranteed to perfectly replace your original display LCD display part.

AUO 15.6" LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p).

Technical data for the AUO 15.6" LCD.
This screen's backlight is powered by LED backlight technology. The signal connector on this LCD is 40 pin and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. Special features: 144hz refresh rate. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

Easy Mount Display.
This slimline, Narrow-Bezel AUO LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Cost of AUO screen.
Auo B156han08.0 H/W:0A screen replacement cost is just £68.34 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality AUO replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Auo B156han08.0 H/w:0a Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.
