Enlarged Image
30 Pins - 19mm wide connector


Error retrieving reviews from the server.

BOE NV140FHM N4T Replacement LCD Screen Part

SKU
1902690
Condition
NEW, Class 1 (ISO-9241)
Size
14.0"
Resolution
1920x1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector

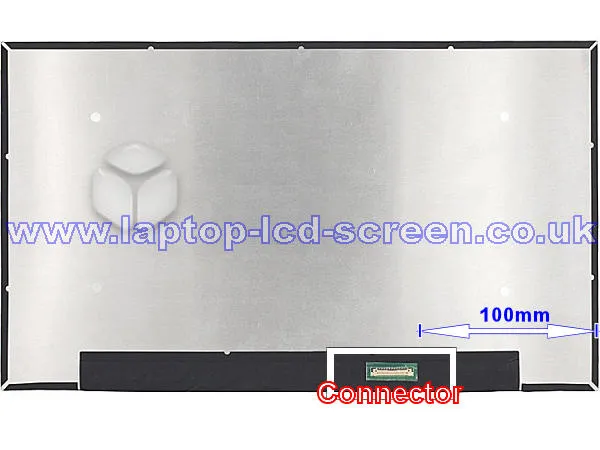

30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Connector Right Edge
10cm to edge of LCD
Display Mode
IPS
 ⓘ Specifications Help
Alternative Technology Available
Connector 7.5cm from egde of LCD
£40.74
 + Shipping Costs
Quantity:
Order in the next 16 hours 24 mins 22 secs for UK delivery Thursday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
BoeHydis 14.0 inch screens replacement laptop LCD screen
BOEHYDIS NV140FHM N4T 14.0
14.0"
1920x1080
FULL HD
LED
30 Pin/19mm

Class I Display - 100% Compatibility for BOEHYDIS screen replacement.
This item is an LCD compatible with Boehydis Nv140fhm N4T. For more information about what we're sending please see the Buyer's Guide tab. This is a class I screen, and guaranteed to perfectly replace your original display LCD display part.

BoeHydis 14.0" LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 14.0" inches diagonally (not including the frame) and has a maximum resolution of 1920x1080 (or is known as FULL HD resolution or 1080p).

Technical data for the BoeHydis 14.0" LCD.
This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

Easy Mount Display.
This slimline, Narrow-Bezel BOEHYDIS LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Cost of BOEHYDIS screen.
Boehydis Nv140fhm N4T screen replacement cost is just £40.74 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality BOEHYDIS replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Boehydis Nv140fhm N4t Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.
