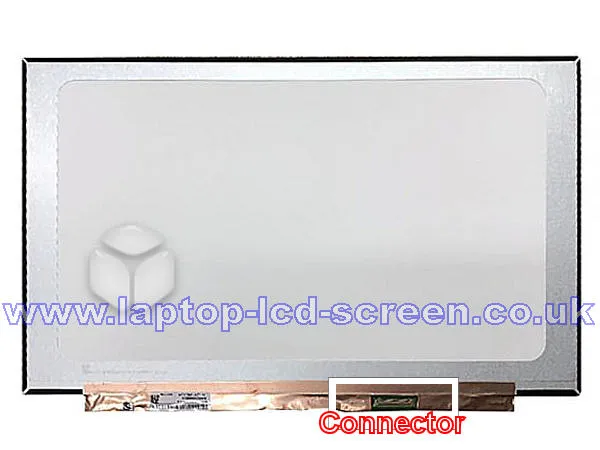

Enlarged Image
40 Pins - 25mm wide connector


Error retrieving reviews from the server.

BOE NV161FHM NX1 HWV3.0 Replacement LCD Screen Part

SKU
2467910
Condition
NEW, Class 1 (ISO-9241)
Size
16.1"
Resolution
1920x1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
40 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Frame Rate
144hz Refresh
Display Mode
IPS
 ⓘ Specifications Help
Alternative Technology Available
165hz
£61.14
 + Shipping Costs
Quantity:
Order in 0 Minutes for UK delivery Tuesday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
BoeHydis 16.1 inch screens replacement laptop LCD screen
BOEHYDIS NV161FHM NX1 HWV3.0 16.1
16.1"
1920x1080
FULL HD
LED 144hz
40 Pin/25mm

Class I Display - 100% Compatibility for BOEHYDIS screen replacement.
This item is an LCD compatible with Boehydis Nv161fhm Nx1 HWV3.0. For more information about what we're sending please see the Buyer's Guide tab. This is a class I screen, and guaranteed to perfectly replace your original display LCD display part.

BoeHydis 16.1" LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 16.1" inches diagonally (not including the frame) and has a maximum resolution of 1920x1080 (or is known as FULL HD resolution or 1080p).

Technical data for the BoeHydis 16.1" LCD.
This screen's backlight is powered by LED backlight technology. The signal connector on this LCD is 40 pin and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. Special features: 144hz refresh rate. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

Easy Mount Display.
This slimline, Narrow-Bezel BOEHYDIS LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Cost of BOEHYDIS screen.
Boehydis Nv161fhm Nx1 HWV3.0 screen replacement cost is just £61.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality BOEHYDIS replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Universal Laptop Screen Installation Video
