You are at > Home > Laptop Screens > DELL (All) > DELL G series
×
Enlarged Image

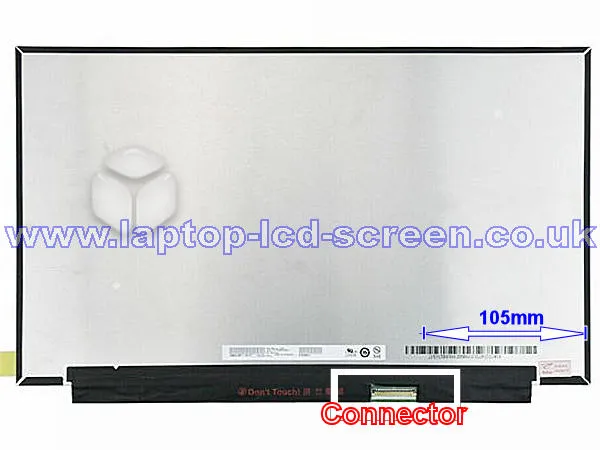

40 Pins - 25mm wide connector

Connector position



Error retrieving reviews from the server.

Dell G3 15 3590 Full-HD 144hz Replacement Laptop Screen

SKU
1451623
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1920X1080 (FHD) 1080p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
40 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Connector Right Edge
10.5cm from edge of LCD
Frame Rate
144hz Refresh
Display Mode
IPS
Screen Bezel
Narrow Border/Narrow Bezel
 ⓘ Specifications Help
Alternative Technology Available
120HZ IPS
165HZ IPS
Connector 100mm from edge
Warning: There may be more than one screen type for your computer. You must choose the correct type. See other options.
£68.34
 + Shipping Costs
Quantity:
Order in 0 Minutes for UK delivery Friday By 1PM

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
Have you got the right product?

The currently selected product on this page is a 15.6" 1920X1080 (FULL HD) with a LED backlight and a 40 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This DELL computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?    How do I Order By Screen Model?

Prices shown include UK VAT

 Variations of DELL G series screens
Type
Backlight
Price
Trade

 DELL G3 15 3590 15.6 FULL HD 60HZ
Matte. Bottom right connector 30 pins (0.5mm)
15.6"
FULL-HD
1920X1080

LED

£43.14

£40.11



Legend:
    Available to buy online
    Unavailable
DELL G series replacement laptop LCD screen
DELL G3 15 3590 15.6 FULL HD 144HZ LAPTOP SCREEN
15.6"
1920X1080
FULL HD
LED 144hz
40 Pin/25mm

Class I Display for DELL laptops
This is a replacement screen for the Dell G3 15 3590 (fhd) (144hz) computer. Class I and fully compatible LCD display part.

DELL G series LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p).

Technical data for the DELL G series LCD.
This screen's backlight is powered by LED backlight technology. The signal connector on this LCD is 40 pin and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. Special features: 144hz refresh rate. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

100% Compatible part.
For the Dell G3 15 3590 (fhd) (144hz) . This display will replace many screen makes and models, including (but not limited to), the following part codes: LP156WFG-SPB2   NV156FHM-NY1

Easy Mount Display.
This slimline, Narrow-Bezel DELL LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Cost of DELL screen.
Dell G3 15 3590 (fhd) (144hz) screen replacement cost is just £68.34 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality DELL replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Dell G3 15 3590 (fhd) (144hz) Screen Installation Video

Don't like videos? See our Step by Step generic screen replacement instructions.
See how to find out which model of screen you have.

Warning!!

This screen is only for devices with 15.6" displays @ 1920X1080 (FULL HD) resolution with a LED backlight and a 40 Pin signal, bottom right connector, with a 0.5mm connector pitch.

There are different screen type choices for your device on this page. You must choose the correct type. If you are unsure which type to choose, we recommend removing your old screen and searching for the screen model number instead.
