You are at > Home > Laptop Screens > HP (All) > HP Chromebook
×
Enlarged Image

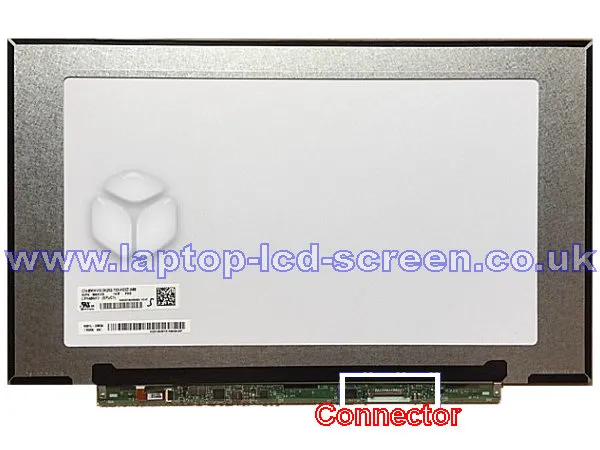

30 Pins - 19mm wide connector


Error retrieving reviews from the server.

HP CHROMEBOOK 14A NA0503TU Replacement Laptop Screen

SKU
2295656
Condition
NEW, Class 1 (ISO-9241)
Size
14.0"
Resolution
1366X768 (HD) 768p
Backlight
LED
Finish
Matte (Anti-Glare)
Connector
30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Display Mode
UWVA
Display Mode
TN (Twisted Nematic)
Screen Bezel
HP MicroEdge™ Screen
Screen Bezel
Narrow Border/Narrow Bezel
 ⓘ Specifications Help
Out Of Stock

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
HP Chromebook replacement laptop LCD screen
HP CHROMEBOOK 14A NA0503TU 14.0 LAPTOP SCREEN
14.0"
1366X768
HD
LED
30 Pin/19mm

Class I Display for HP laptops
This is a replacement screen for the Hp Chromebook 14a NA0503TU computer. Class I and fully compatible LCD display part.

HP Chromebook LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 14.0" inches diagonally (not including the frame) and has a maximum resolution of 1366X768 (or is known as HD resolution or 768p).

Technical data for the HP Chromebook LCD.
This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

Easy Mount Display.
This slimline, Narrow-Bezel HP LCD features an ultra-thin frame, that requires no awkward screws, and can be securely mounted, to the laptop's top lid using LCD mounting adhesive strips. The LCD is easily removed if needed without voiding your warranty. (strips available separately).

Hp Chromebook 14a Na0503tu Screen Installation Video

152,022 views • 23 May 2021  |  Slow Playback? Standard Quality
