You are at > Home > Laptop Screens > Lenovo (All) > IBM Lenovo ZhaoYang
×
Enlarged Image
30 Pins - 19mm wide connector


Error retrieving reviews from the server.

Lenovo ZHAOYANG E5 ITL Full-HD Replacement Laptop Screen
( Without Touch Glass )

SKU
2230897
Condition
NEW, Class 1 (ISO-9241)
Size
15.6"
Resolution
1920X1080 (FHD) 1080p
Backlight
LED
Touch Screen
NO
Touch Glass
Not included
Finish
Matte (Anti-Glare)
Connector
30 PIN EDP (bottom right)
Connector Pitch
0.5mm (Large)
Display Mode
IPS
Screen Bezel
Infinity Borderless™ Screen
 ⓘ Specifications Help
Alternative Finish
Glossy / Glare
Alternative Technology Available
60HZ TN
72% NTSC / 100% sRGB
Warning: There may be more than one screen type for your computer. You must choose the correct type. See other options.
£43.14
 + Shipping Costs
Quantity:
ⓘ  Christmas Delivery, see when we are shipping over Christmas & New Year.

You'll Also Need:
LCD Mounting Strips      Stretch Release Tape£4.99+VAT (What's this?) Stretch Adhesive Tape is a special LCD tape that can be removed easily (unlike double-sided tape), by pulling tabs at the end of the tape.
Have you got the right product?

The currently selected product on this page is a 15.6" 1920X1080 (FULL HD) with a LED backlight and a 30 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This IBM computer has other screen types fitted. You must make sure you purchase the correct one which uses the same resolution and connector type.

Can I Upgrade My Screen?    How do I Order By Screen Model?

Prices shown include UK VAT

 Variations of IBM Lenovo ZhaoYang screens
Type
Backlight
Price
Trade

 LENOVO ZHAOYANG E5 ITL 82F7 SERIES 15.6 FULL HD TOUCH
Matte. Bottom right connector 30 pins (0.5mm)
15.6"
FULL-HD
1920X1080

LED

£43.14

£40.11

 LENOVO ZHAOYANG E5 ITL 82F7 SERIES 15.6 FULL HD TOUCH
Matte. Bottom right connector 40 pins (0.4mm) Touch
15.6"
FULL-HD
1920X1080

LED

£65.94

£61.32

 LENOVO ZHAOYANG E5 ITL 15.6 FULL HD TOUCH
Matte. Bottom right connector 40 pins (0.4mm) Touch
15.6"
FULL-HD
1920X1080

LED

£65.94

£61.32



Legend:
    Available to buy online
    Unavailable

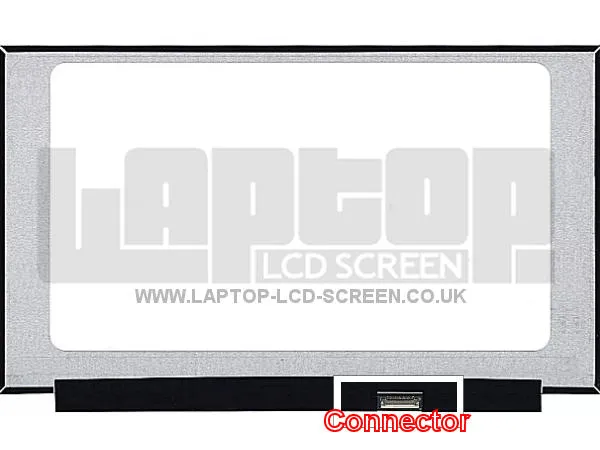

IBM Lenovo ZhaoYang replacement laptop LCD screen
LENOVO ZHAOYANG E5 ITL 15.6 FULL HD LAPTOP SCREEN NO DIGITIZER
15.6"
1920X1080
FULL HD
LED
30 Pin/19mm

Class I Display for LENOVO laptops
This is a replacement screen for the Lenovo Zhaoyang E5 Itl (FHD) computer. Class I and fully compatible LCD display part.

IBM Lenovo ZhaoYang LCD specifications.
We can supply this LCD with a MATTE (Anti-Glare) finish. Please check that your original screen has a glass area of 15.6" inches diagonally (not including the frame) and has a maximum resolution of 1920X1080 (or is known as FULL HD resolution or 1080p).

Technical data for the IBM Lenovo ZhaoYang LCD.
This screen's backlight is powered by LED backlight technology. The data connector on this screen has 30 pins and is an eDP displayport, with a 0.5mm pitch, which can be found at the bottom right side of the screen - on the back of the LCD. This is a genuine IPS (AAS/ADS/AHVA or FFS/UWVA/PLS) screen offering ultra wide viewing angles.

100% Compatible part.
For the Ibm Lenovo Zhaoyang E5 Itl (FHD). This display will replace many screen makes and models, including (but not limited to), the following part codes: LP156WFC-SPD1   5D10R29527   B156HAN02.1-HW8A   01YN132   N156HCA-EAB-C2   01YN133   LP156WFC-SPD1   01YN134   NV156FHM-N48-V8.2   02DA366   LP156WF9-SPK1   5D10M42873   N156HCA-EAB-C1   5D10M42881   NV156FHM-N48   5D10M42882   LM156LFAL01   5D10Q66140   B156HAN02.1-7A   5D10R04645   N156HCA-EAB-C2   5D10R65301   NV156FHM-N48-V8.2   5D10S68976   LP156WFC-SPD2   5D10T05041   B156HAN02.1=HW8B   5D10V82342   NV156FHM-N48-V8.3   5D10W01586   N156HCA-EAB-REV.C3   5D10W46420   5D10W46481   B156HAN02.1-HW8C   N156HCA-EAB-C3   5D10W69524   5D11B03649   LP156WFC-SPD2   5D11B65886   LP156WFC-SPD7   5D11C14836   N156HCA-EAB-C4   5D11C18141   B156HAN02.1-EA   5D11C89613   LP156WFC-SPD8   5D11D20659   N156HGA-EA3-C2   5D10W69518   B156HTN06.1-HW3A   5D10R41285   NT156FHM-N61-V8.0   5D10R41287   N156HGA-EA3-C1   5D10R41288   B156HTN06.1-9A   5D11D96483   NT156FHM-N61-V8.1   5D11J11563   N156HGA-EA3-C6   5D11J61821

Not Touchscreen. Raw LCD panel only.
IBM Lenovo ZhaoYang screens can sometimes come touch screen enabled, this product is a non-touchscreen model. We are supplying the raw LCD panel only without any accompanying front touch glass overlay (digitizer). If your laptop has a screen and a glass covering providing touch screen features you will need the raw LCD and the digitizer glass together. Professionals can separate the old digitizer with a heat-gun (if not damaged), and fit it to the new display. If your laptop is not a touchscreen model, this is the correct product for you.

Cost of LENOVO screen.
Ibm Lenovo Zhaoyang E5 Itl (FHD) screen replacement cost is just £43.14 plus shipping.

Warranty
We give an industry leading 2 year warranty on all our high quality LENOVO replacement laptop screens. Terms and conditions apply.

Fast Delivery
UK and Europe only.



Certified Screen Replacement5 Star Rated Icon

Universal Laptop Screen Installation Video

149,679 views • 23 May 2021  |  Slow Playback? Standard Quality

Warning!

This screen is only for devices with 15.6" displays @ 1920X1080 (FULL HD) resolution with a LED backlight and a 30 Pin signal, bottom right connector, with a 0.5mm connector pitch.

This product is not for touch screen devices. [ Info ⓘ ]

There are different screen type choices for your device on this page. You must choose the correct type. If you are unsure which type to choose, we recommend removing your old screen and searching for the screen model number instead.
